Products [PUF Insulated Sandwich Panels]

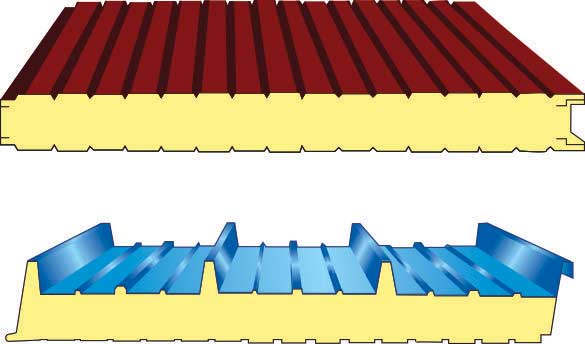

We offer an affordable range of sandwich panels for roofing, wall cladding and cold room walling. These panels consists of two facings of relatively thin metal sheet profiled of high strength enclosing a core, which is relatively thick and light with required stiffness. The facings are of aluminum or steel.
Paramount Building System Products [PUF Insulated Sandwich Panels]
Thicknesses 40 to 100 mm
Width 1000 mm
Maximum Length 6 meter

Specifications:-
  • Density: 40/-2 Kg/m3 polyurethane PUF insulation
  • Insulation thickness: 40mm up to 100mm to suit temperature range from -200°c to 100°c
  • Outer metal skin: PPGI (Pre-painted Galvanized steel) 0.5mm thick.
Wall Panel

Consists of Polyurethane Insulated 40mm to 100mm thick panels of PUF Density 40± 2Kg/m3. The individual panels will be firmly locked together by tongue and groove. The Panel shall have both side 0.5mm thick PPGI Sheet.

Roofing Panel
Made out of Polyurethane Insulated 40mm to 100 mm thick panels of PUF Density 40 ± 2Kg/m3. The Panel shall have both side 0.5mm thick PPGI Sheet.

Advantages
  • High load bearing capacity at low weight
  • Excellent thermal insulation
  • Absolute water and vapour barrier
  • Excellent air tightness and free of thermal bridges
  • Resistance to weather and aggressive environments
  • Long life and very low maintenance cost
  • Reasonable fire reaction and resistance
